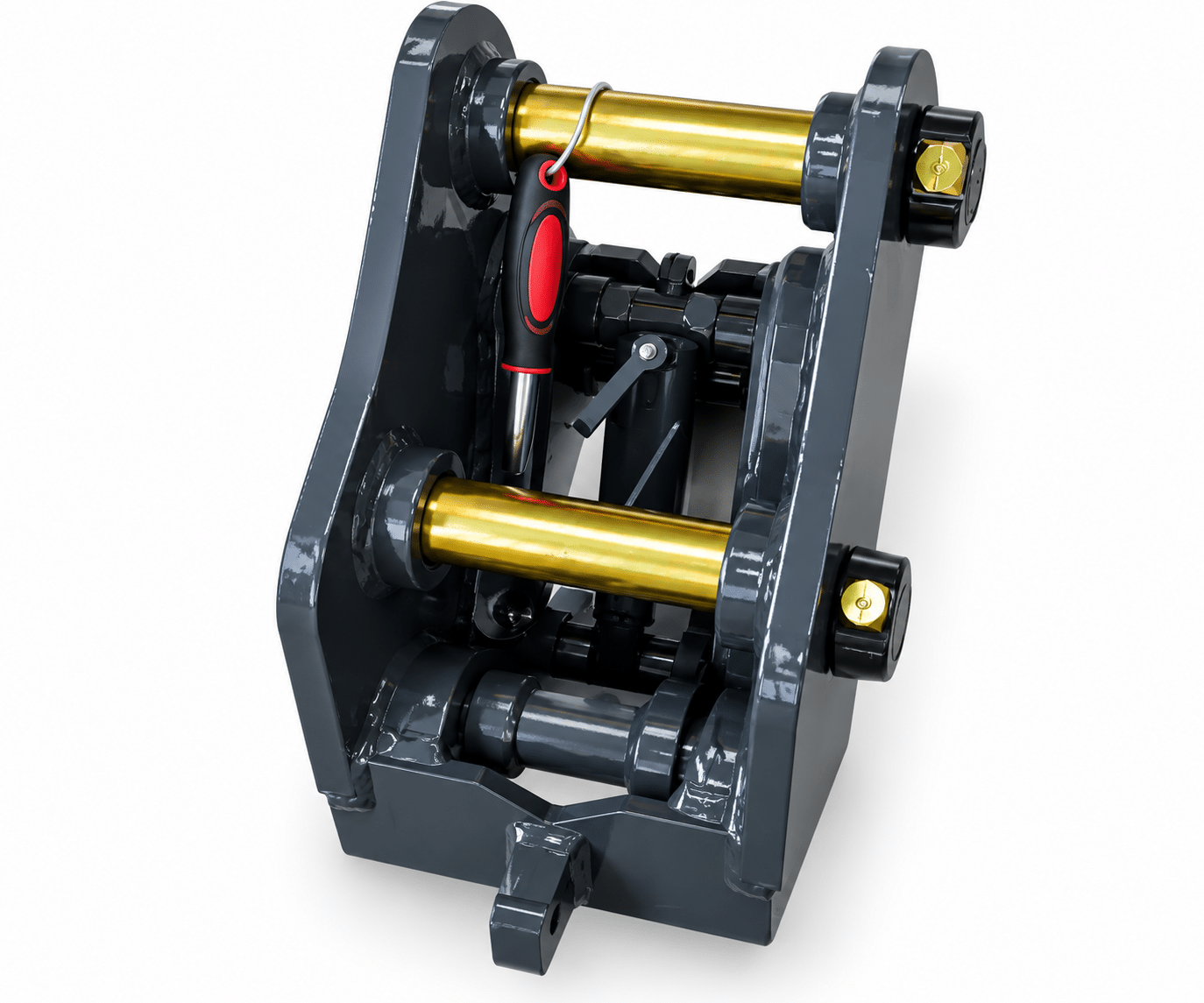

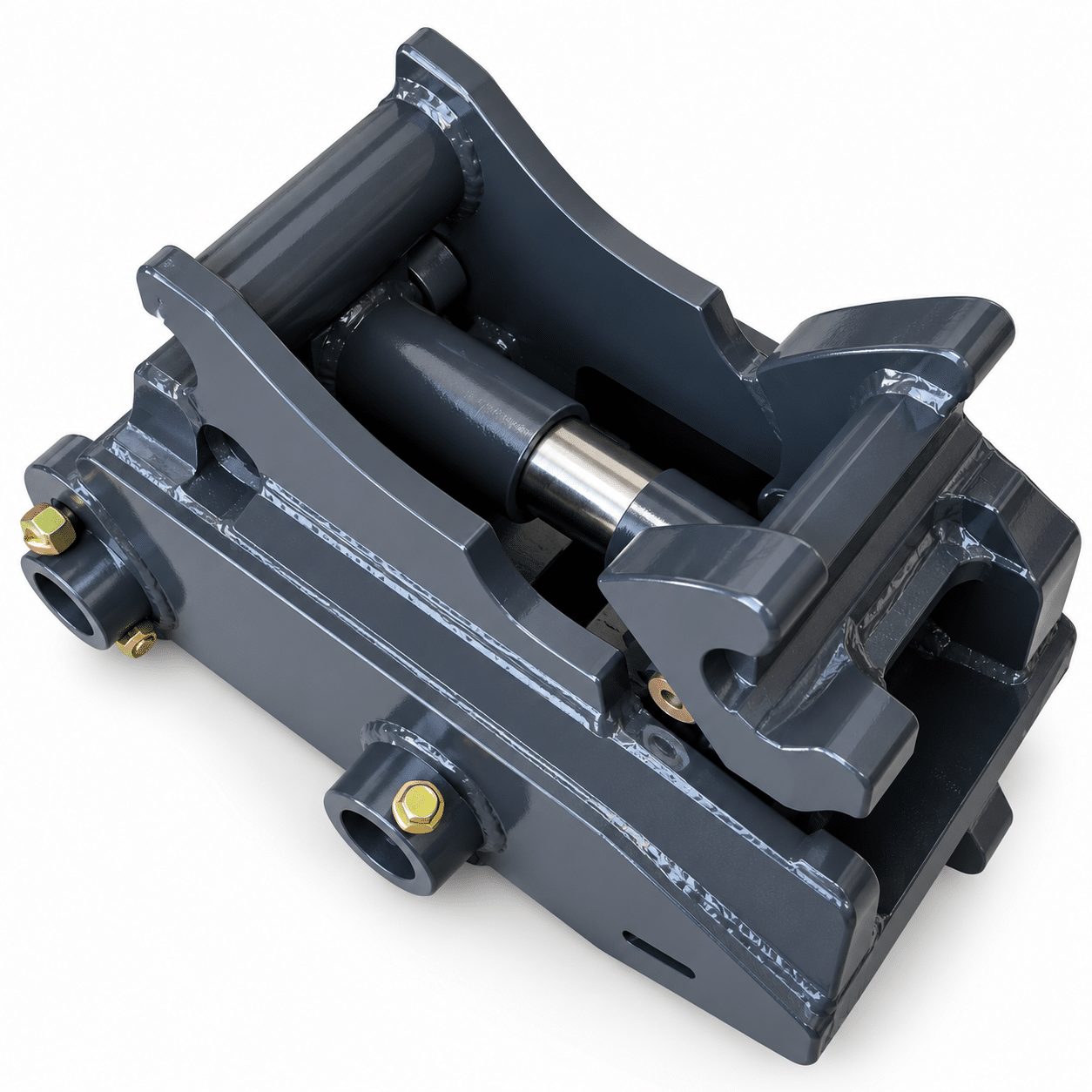

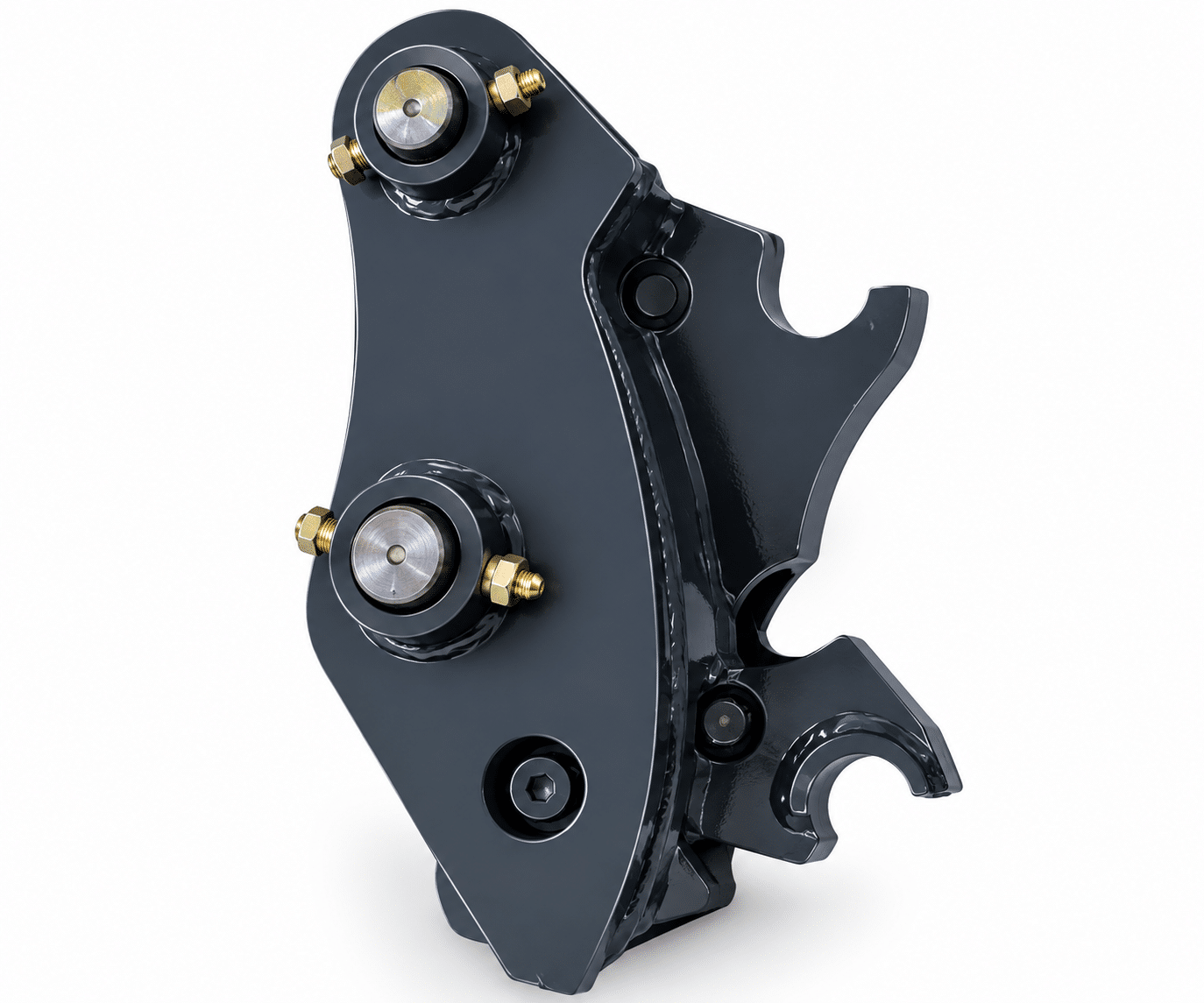

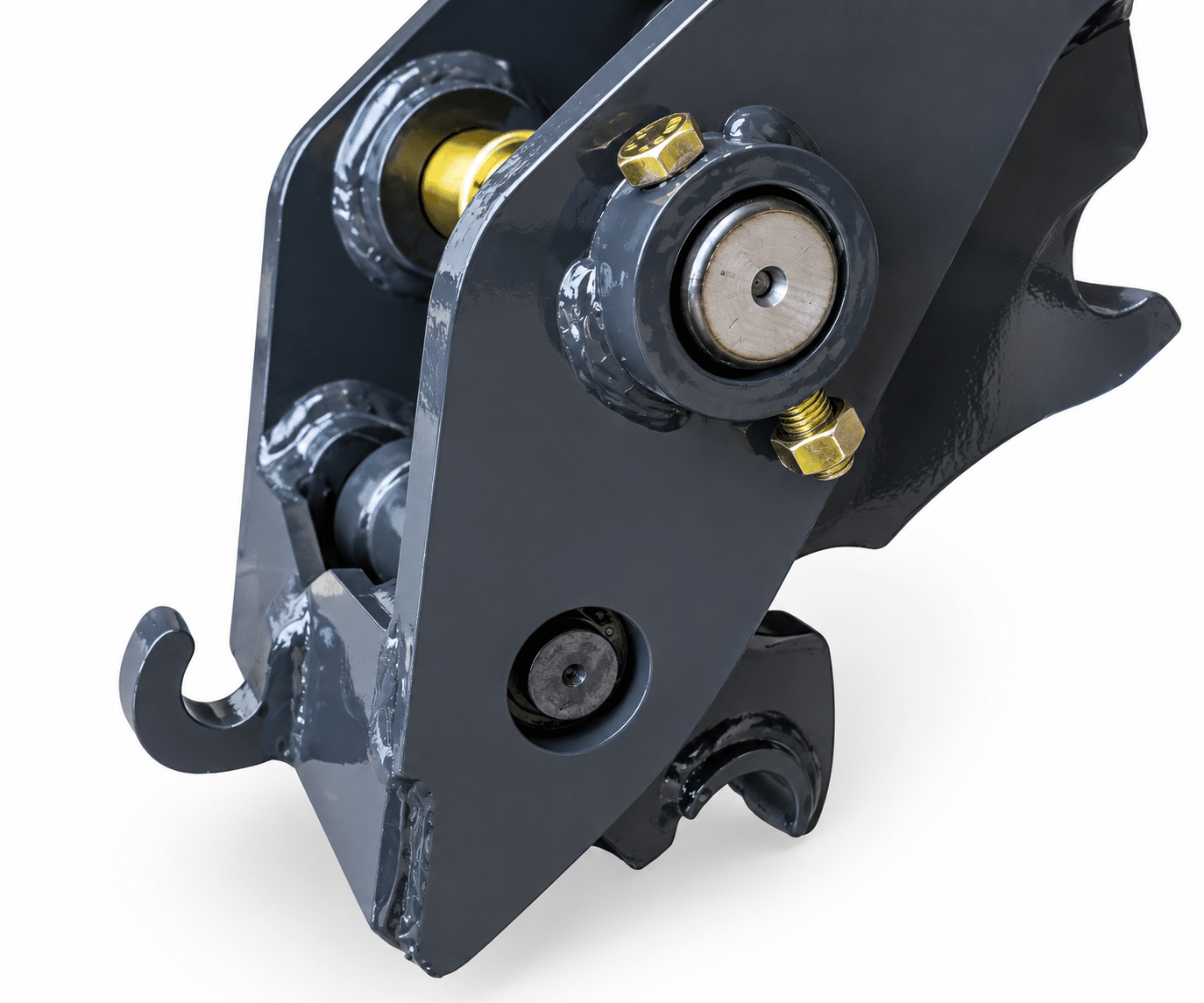

This heavy-duty mechanical quick hitch is designed to fit most mini excavators using 40mm attachment pins. It makes switching between compatible buckets and attachments faster without having to remove and reinstall mounting pins each time.

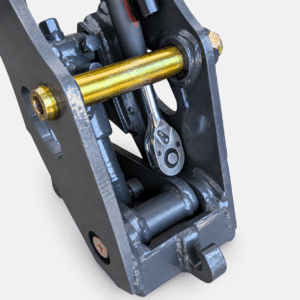

The mechanical jaws are easily opened and closed using the supplied ratchet and socket. A locking cylinder prevents the jaws from opening during operation, providing additional security once the attachment is locked in place.
Features:
- Fits most mini excavators using 40mm attachment pins
- 40mm mounting pins
- Heavy-duty steel construction
- Mechanical adjustable jaw design
- Locking cylinder helps prevent jaws from opening
- Includes ratchet and socket for operation
- Can also be operated with an impact
- Makes changing compatible attachments faster and easier
- Mounting pins included

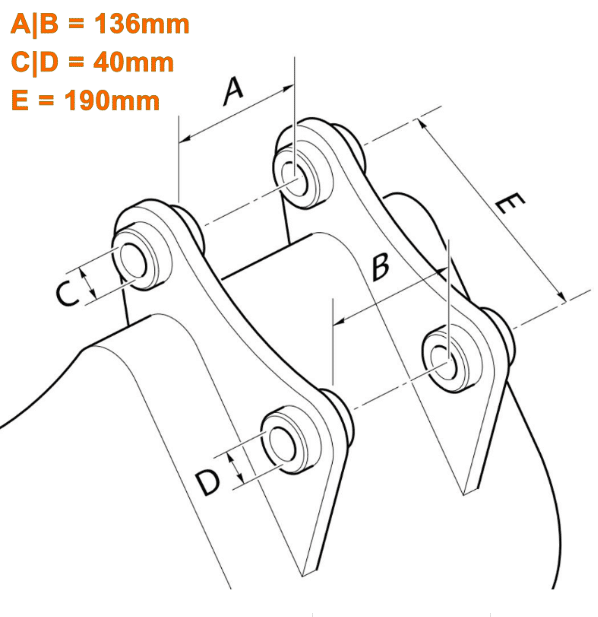

- Clamp jaw width: 132mm (for mating attachment)
- Clamp pin diameter: 40mm (for mating attachment)
- Clamp pin spacing: 150-210mm (for mating attachment)
- Weighs 90 lbs
