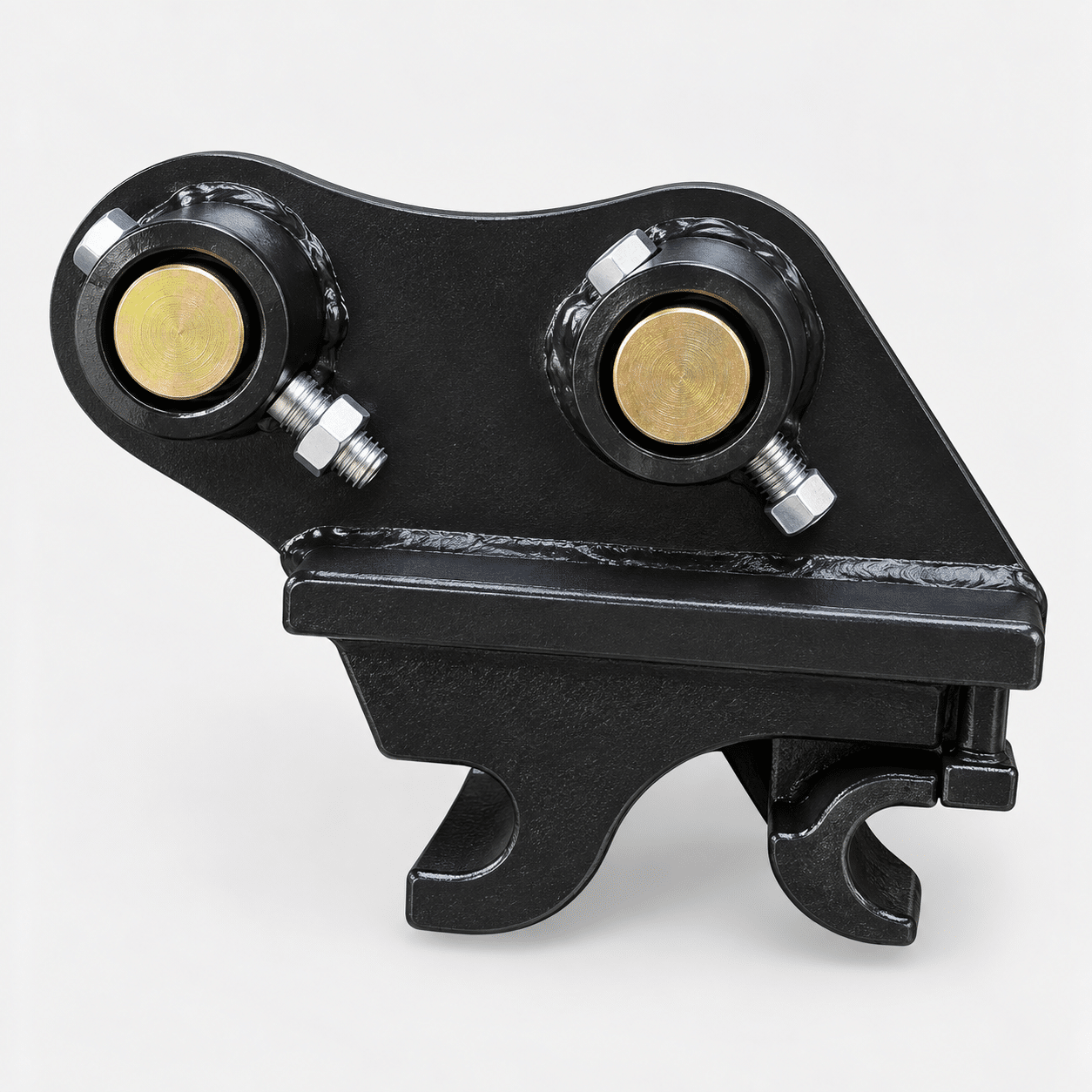

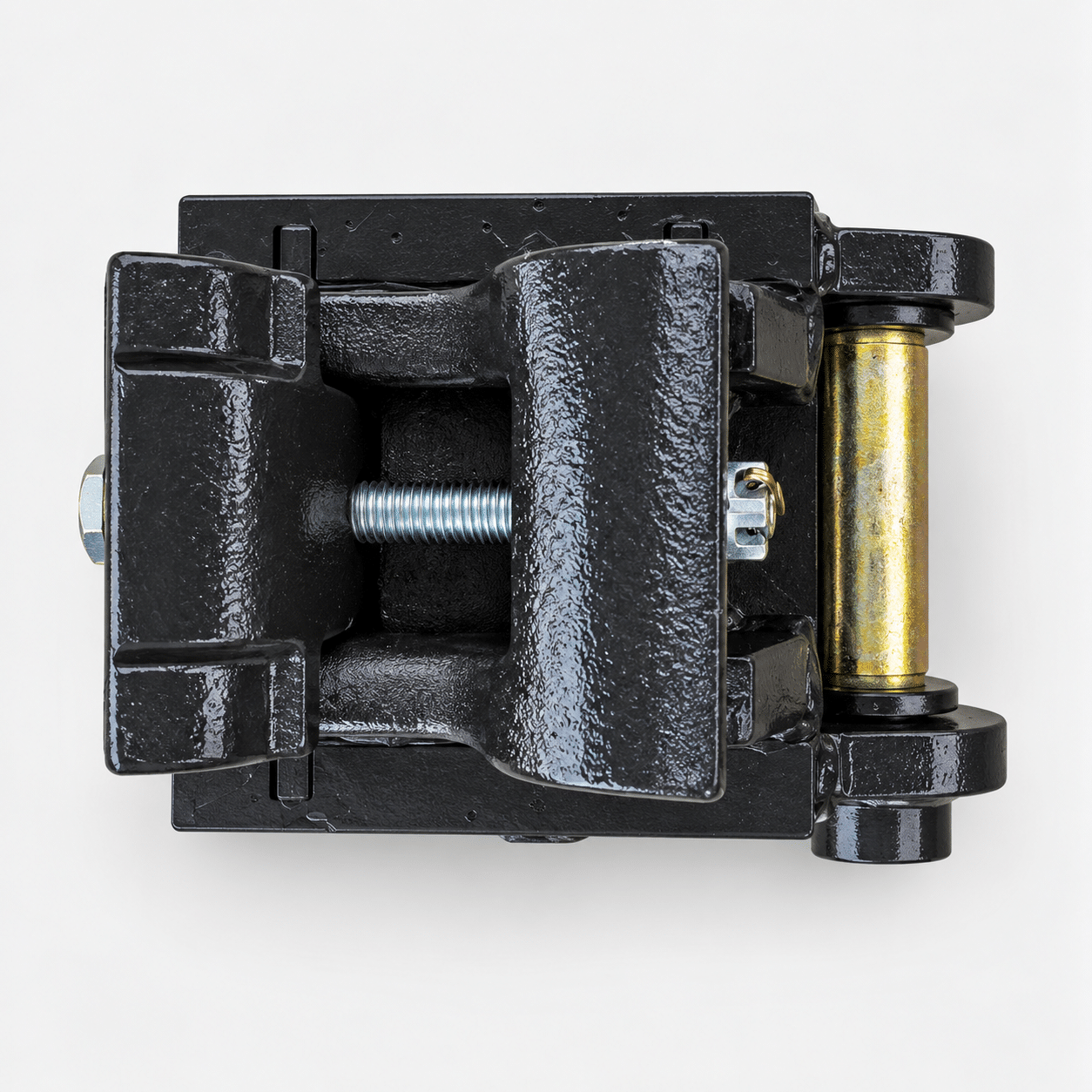

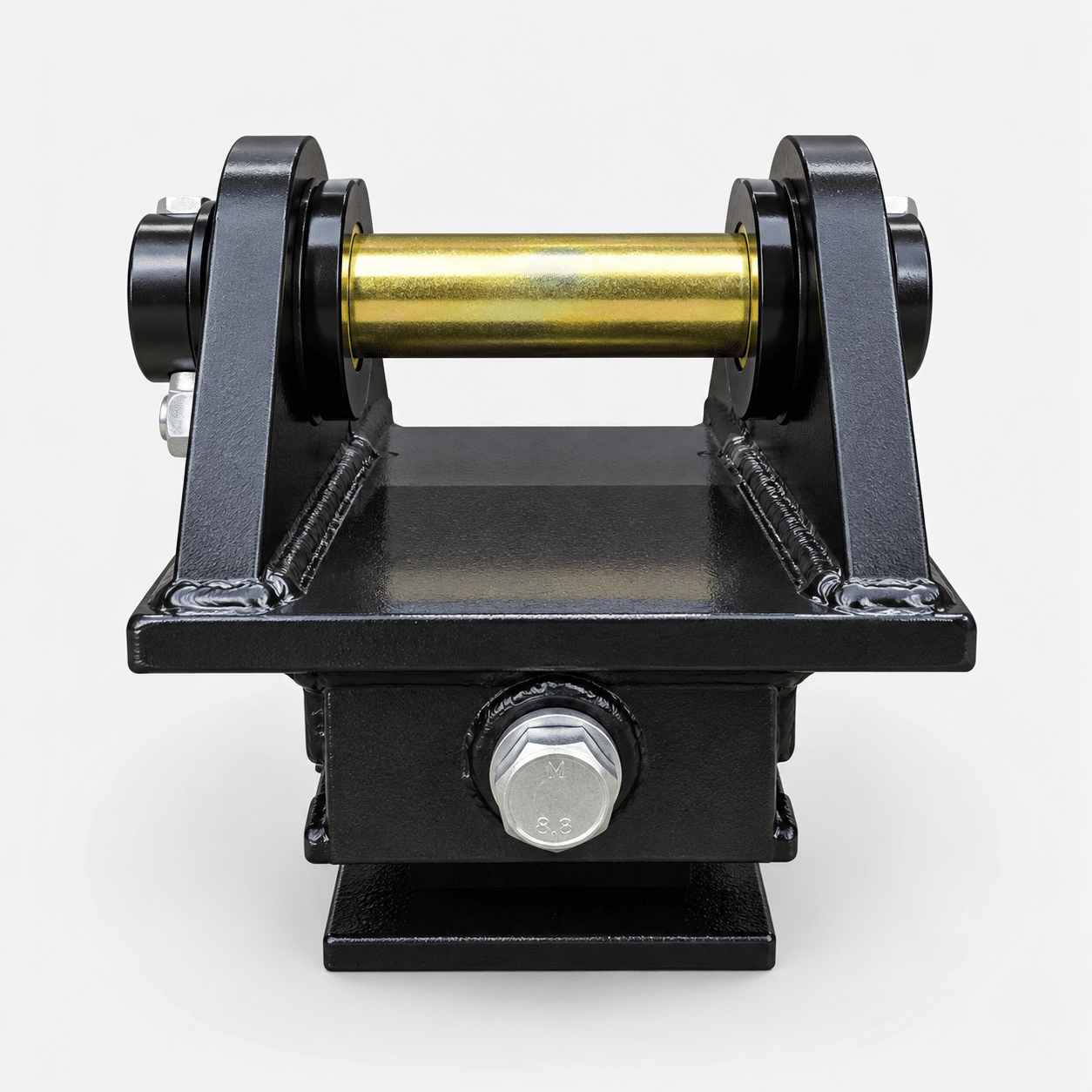

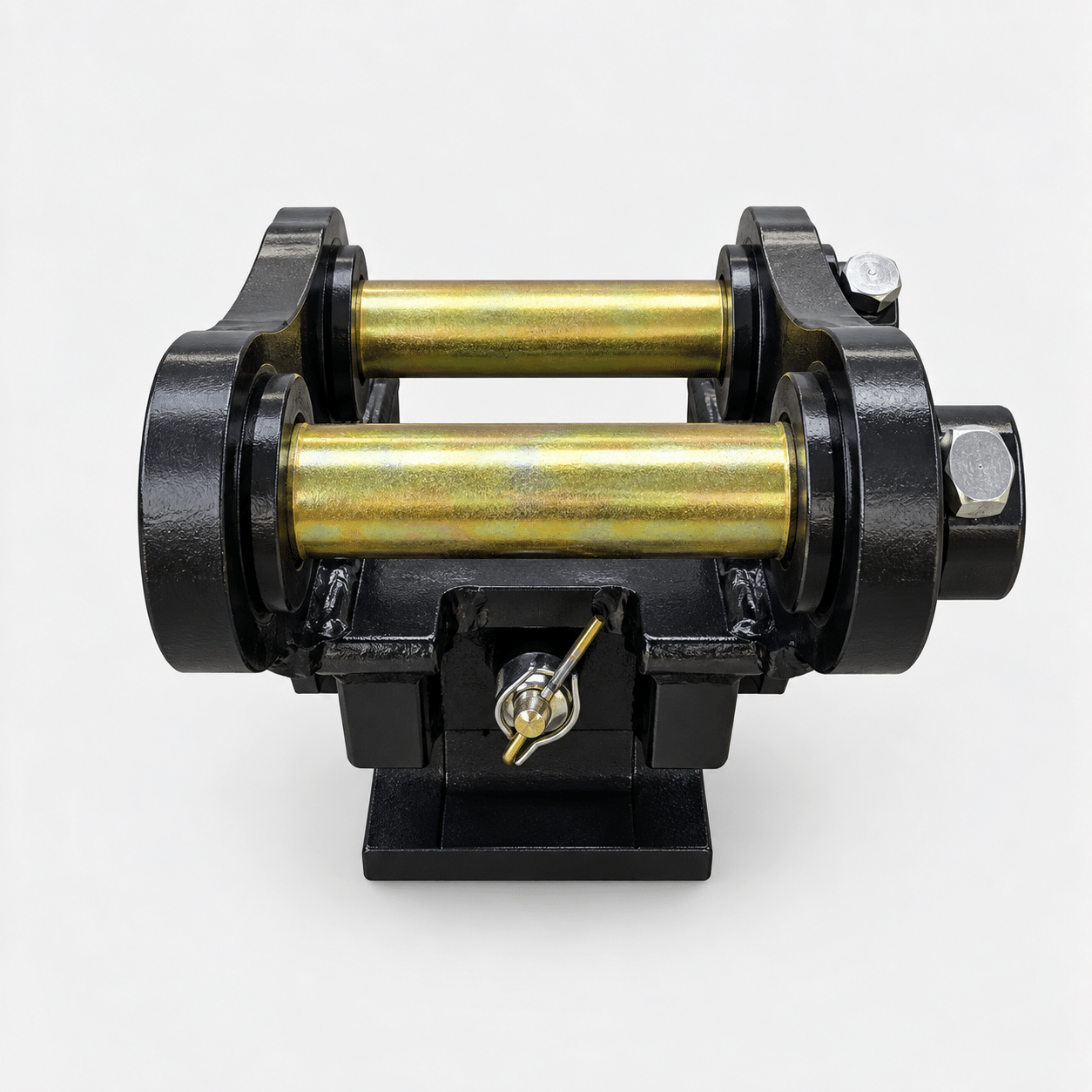

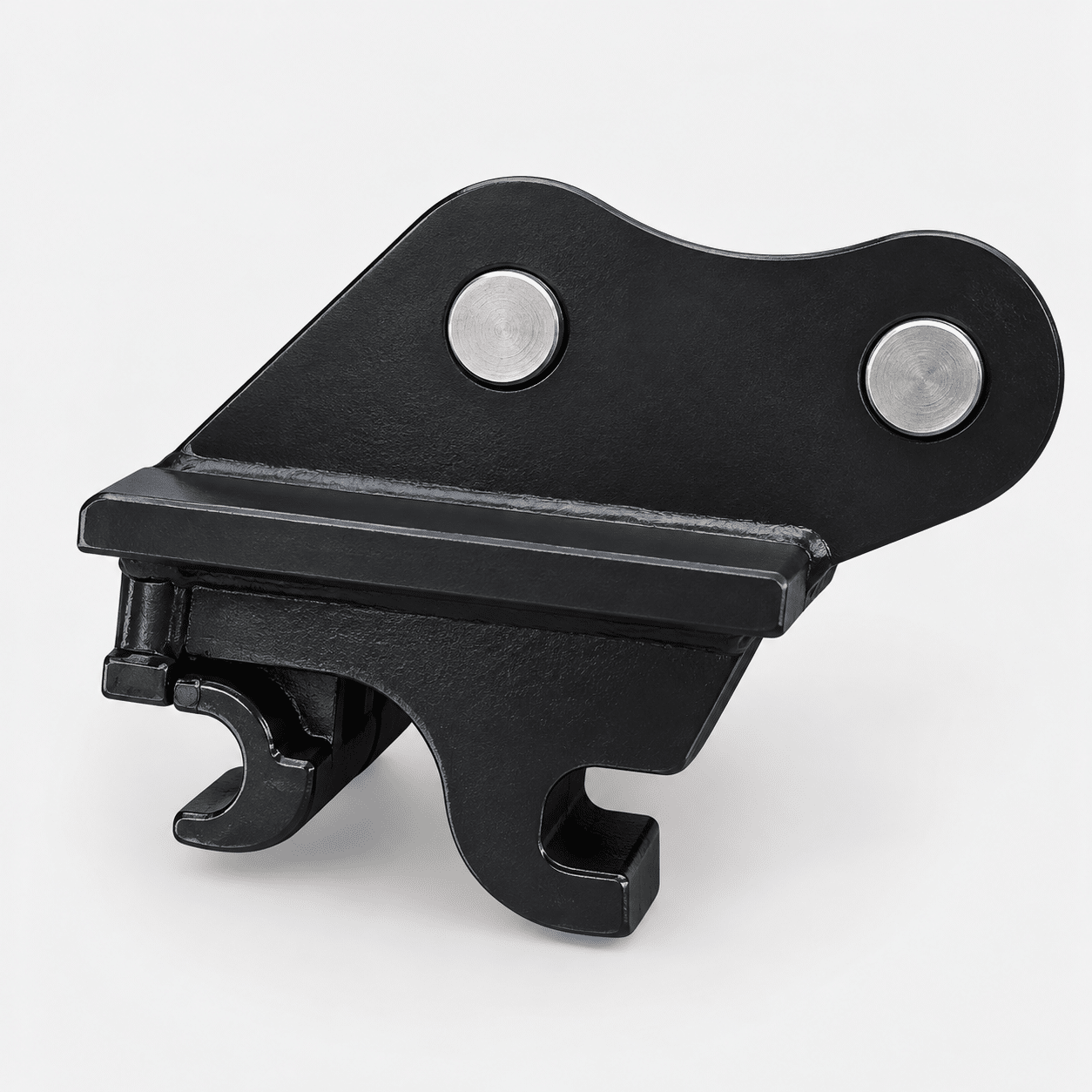

Strata Screw Quick Attach

This heavy-duty adjustable quick attach is designed for most Chinese mini excavators 1.8 ton and smaller using 25mm pins. The screw-adjustable design allows it to clamp securely onto a range of compatible buckets and attachments.

It accepts attachments with 90mm jaw width and 65–90mm pin spacing, giving you more flexibility when using attachments with different pin centers. Heavy-duty 15mm thick sidewalls provide extra strength compared with many lighter quick attaches on the market.

Adjustment is simple using a standard 22mm socket.

Features:

• Fits most Chinese mini excavators 1.8 ton and smaller
• 25mm mounting pins
• Fits 90mm attachment jaws
• Adjustable for 65–90mm attachment pin spacing
• Heavy-duty 15mm thick sidewalls
• Screw-adjustable clamping design
• Adjusts with a standard 22mm socket
• Makes changing compatible attachments faster and easier

This comes with an inside width of 100mm, and (2) removable 5mm spacers
